tttd

TTT-Discover (arXiv:2601.16175) specializes a model to one problem while it searches for the highest-scoring solution. The harness selects candidate programs, asks the model to improve them, evaluates the generated programs, and adds valid candidates to a PUCT archive. Reef trains the scenario's LoRA adapter after it receives one complete rollout grid. The next search step uses the updated adapter.

What it does #

Run one scenario per problem. The search archive retains the best candidate found so far. Mean rollout reward describes the programs sampled for a training step, so it can decrease even when the best archived solution does not change.

The cookbook example uses Qwen3-8B and includes the Erdős minimum-overlap problem and the circle-packing problems for 26 and 32 circles.

How one step runs #

The harness chooses groups_per_step parent candidates and samples rollouts_per_group programs from each parent. A prompt contains the task instruction. When a parent already has a valid program, the prompt also contains that program, its reward, and the end of its recorded output.

Every model request passes through Reef's OpenAI-compatible chat endpoint. The SGLang backend records the sampled token IDs, response loss mask, and rollout log probabilities. Reef assigns the scenario's current adapter to the request and records the adapter version with the inference.

The task judge executes the generated program and computes its reward. The harness reports that reward with the inference receipt and the rollout's step, group, and position. TTTDProcessor waits for every position in the grid. It rejects a grid that contains more than one release. Groups with one reward value across all siblings are removed after the grid reaches the barrier. If every group is constant, the processor keeps one group so that the training runtime receives a zero-signal batch.

Slime computes adaptive-beta entropic leave-one-out advantages within each group. The loss uses the rollout log probabilities without PPO clipping and adds centered token KL against the frozen base model. Megatron updates rank-32 LoRA matrices on the attention and MLP projections. Reef publishes the adapter to SGLang after the optimizer step succeeds.

The controller writes the updated PUCT archive to tttd-search-state.json with phase pending. It waits for Reef's scenario step to advance and for the serving runtime load ID to change. It then records phase committed with the new scenario step and starts the next search step.

Configuration #

The report contract #

Every rollout reports a finite score against the receipt returned by its inference request. The report's metadata identifies one coordinate in the step grid. Reef validates these fields when it receives the report.

client.report(scenario, {
    "score": reward,
    "metadata": {
        "step": step,
        "group": group,
        "rollout": rollout,
        "groups_per_step": groups_per_step,
        "rollouts_per_group": rollouts_per_group,
    },
}, references=[receipt])

The cookbook harness keeps the ordinary PUCT search separate from its Reef adapter. The adapter sends each inference through the scenario endpoint, retains the returned receipt, and reports the judge's reward against that receipt with the rollout coordinate. The search code does not import a Reef client or construct report payloads.

Run the example #

The example starts Ray, Slime, Megatron, SGLang, Reef, reef-eval, and the selected Harbor task on one machine. It requires Linux, NVIDIA GPUs, Docker, and the Reef training dependencies described in Installation. Run the following commands from the repository root:

git submodule update --init third_party/reef-client
python -m pip install -e ./third_party/reef-client
python -m pip install -e . "reef-eval[harbor]"
cd recipes/tttd/examples/tttd

run.sh downloads Qwen/Qwen3-8B into work/model on its first run, starts the stack, and runs one episode of harbor/erdos_min_overlap on the paper grid: eight groups of 64 rollouts, one optimizer step, thinking enabled, two GPUs.

./run.sh

TTTD_TASK is the only user-facing environment variable. The example keeps the grid and training settings in serve.yaml. A reduced smoke can use two groups of two rollouts, one step, and thinking disabled; that run checks the integration path rather than the sampling budget used for the formal results.

Reef writes its service log to work/erdos_min_overlap/reef.log. The public status endpoint reports the scenario step and runtime load ID:

curl -s \
  -H "Authorization: Bearer reef-local" \
  http://127.0.0.1:8900/reef/status

The controller returns an error when the rollout count, scenario step, served release, or stored search identity does not match the current run. A successful exit confirms that Reef committed the requested number of training steps.

Choose a problem #

Three Harbor tasks ship with the example:

Erdős is the default. TTTD_TASK selects another: run.sh gives each task its own scenario and state directory, and sizes the memory limits for it, because the packing tasks need a longer context on the same GPUs.

TTTD_TASK=circle_packing_26 ./run.sh

The judges run each submitted program in a subprocess and recompute the returned quantity. The circle-packing judges verify the circle count, ensure every circle stays inside the square, check pairwise non-overlap and finite values, and then sum the radii. They do not use the sum reported by the generated program.

Configure a trajectory #

The grid has one source in serve.yaml. The harness reads the same groups_per_step, rollouts_per_group, steps, and max_new_tokens values when it starts. Slime's --global-batch-size in that file must equal groups_per_step x rollouts_per_group.

The reference grid contains 8 x 64 = 512 rollouts per optimizer step. Training starts after all configured coordinates have arrived. Completion length and the number of concurrent evaluator processes determine GPU memory, host memory, and CPU use, so test the intended grid for one step before requesting a long run.

The packing configuration sets max_tokens_per_gpu to 16384, uses a log-probability chunk size of 512, and caps evaluator concurrency at 256. The Erdős configuration uses a 30000 token budget per GPU, a log-probability chunk size of 1024, and at most 512 evaluator workers.

Formal 8x64 results #

The three trajectories used Qwen3-8B with thinking enabled on two NVIDIA B200 GPUs. Each search step contained eight groups of 64 programs, followed by one rank-32 LoRA update with an Adam learning rate of 4e-5. Each task has one trajectory, so these results do not estimate variance across seeds.

Erdős minimum overlap #

The result below covers the first 25 committed search and training steps. The judge certifies the C5 upper bound, so lower values are better.

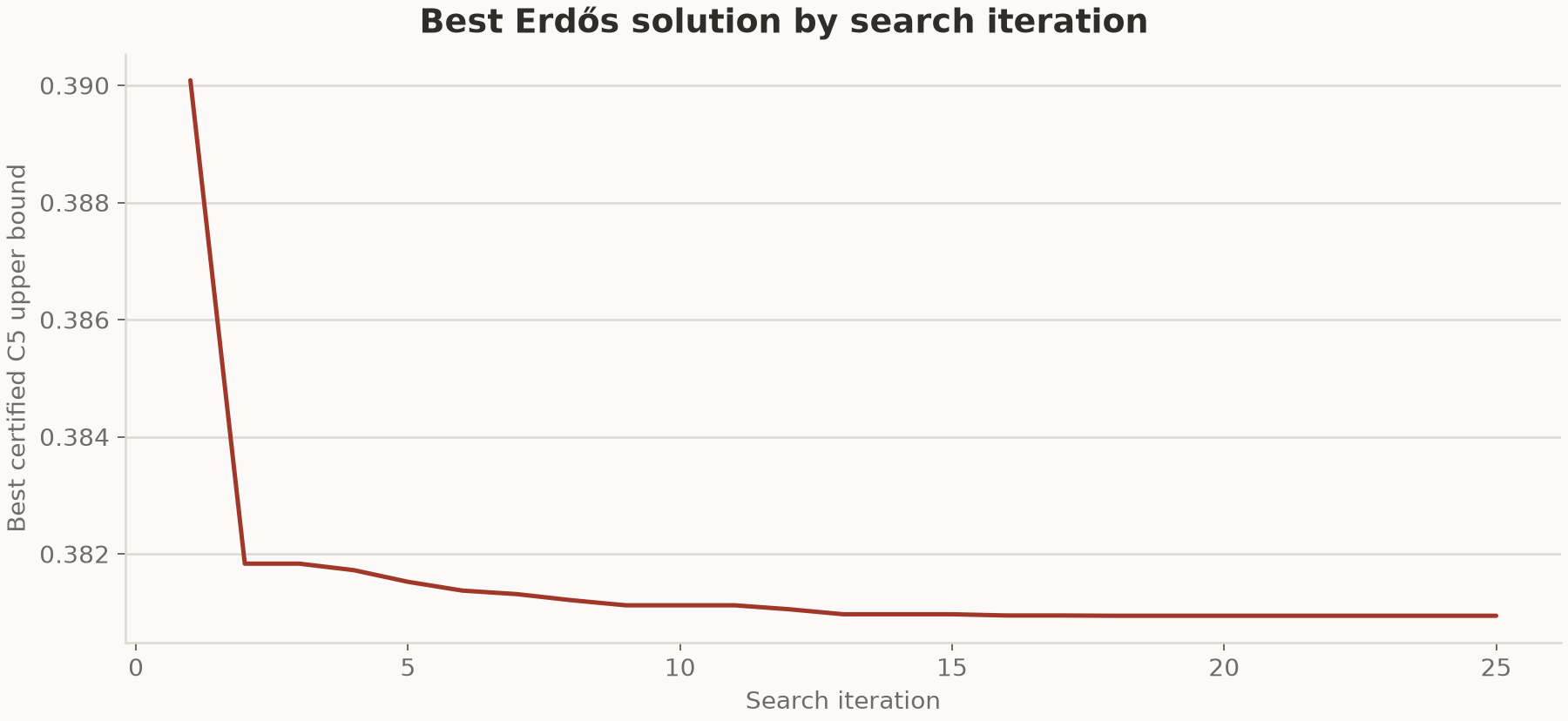

The curve reads the committed PUCT archive after each step and stops at iteration 25. See the Erdős result details for the run configuration, numeric history, and W&B run ID.

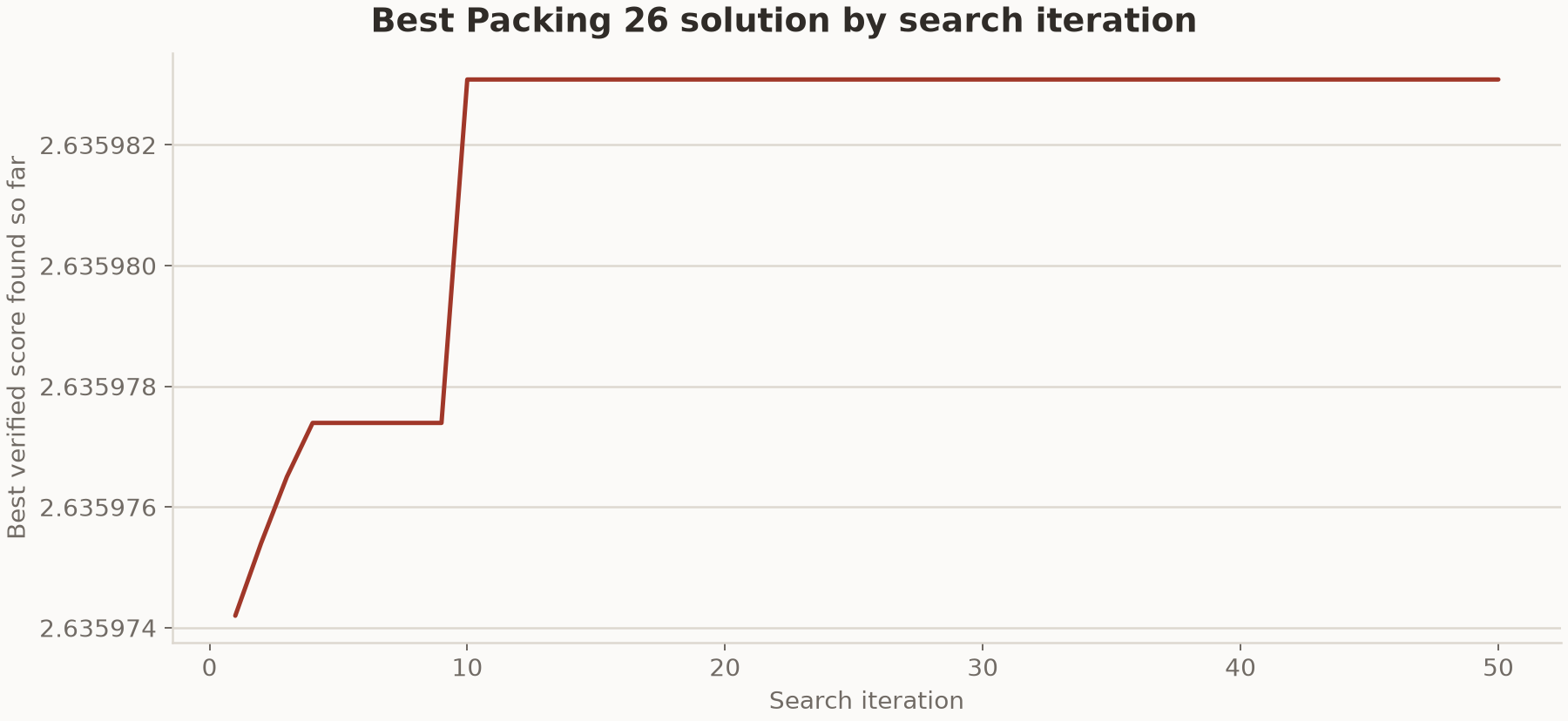

Packing 26 #

The judge verifies the circle count, square boundaries, and pairwise non-overlap before summing the radii. Higher values are better.

The certified result matches the value reported by TTT-Discover at six decimal places. See the Packing 26 result details for the run configuration, saved program, and W&B run ID.

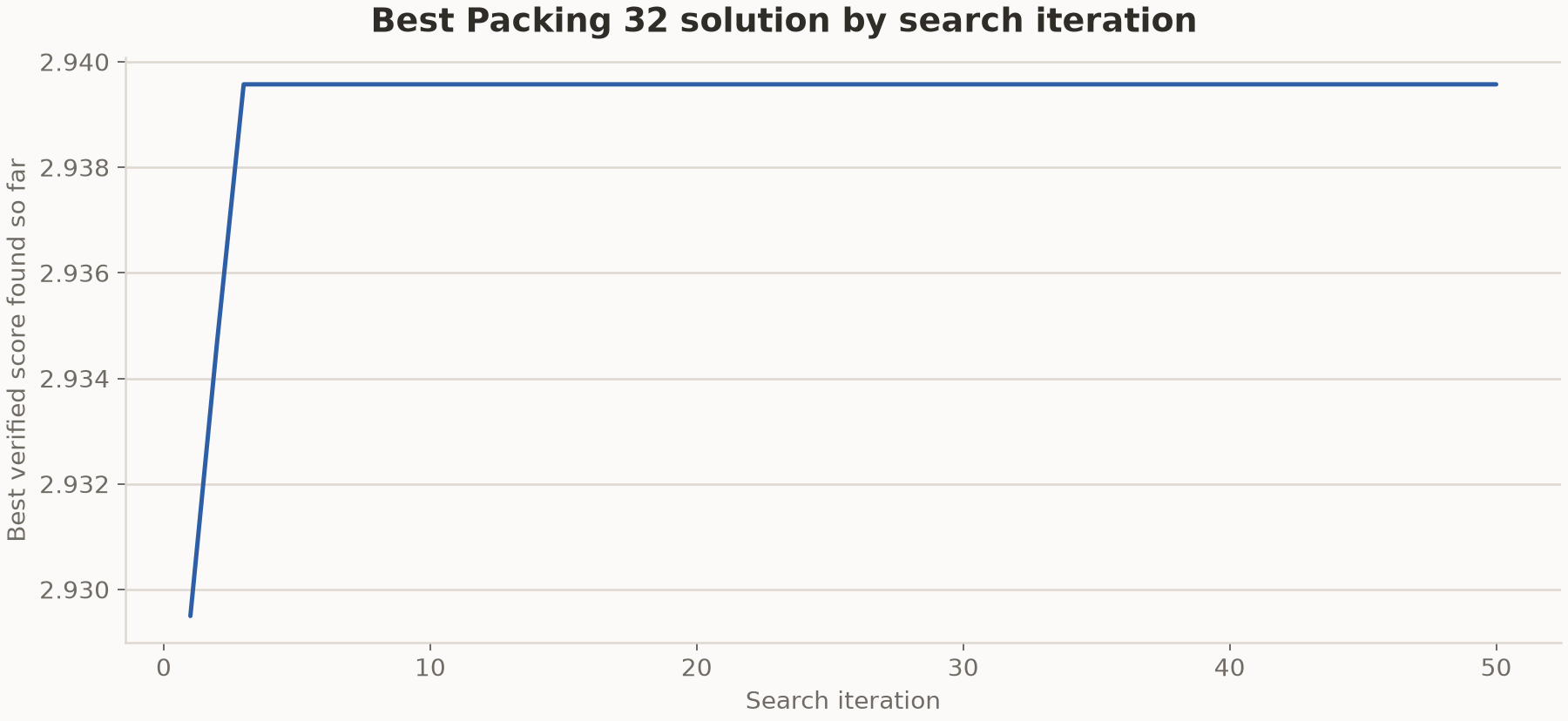

Packing 32 #

The judge uses the same checks as Packing 26 and sums the 32 verified radii.

The certified value differs from the value reported by TTT-Discover by less than 8e-7. See the Packing 32 result details for the run configuration, saved program, and W&B run ID.

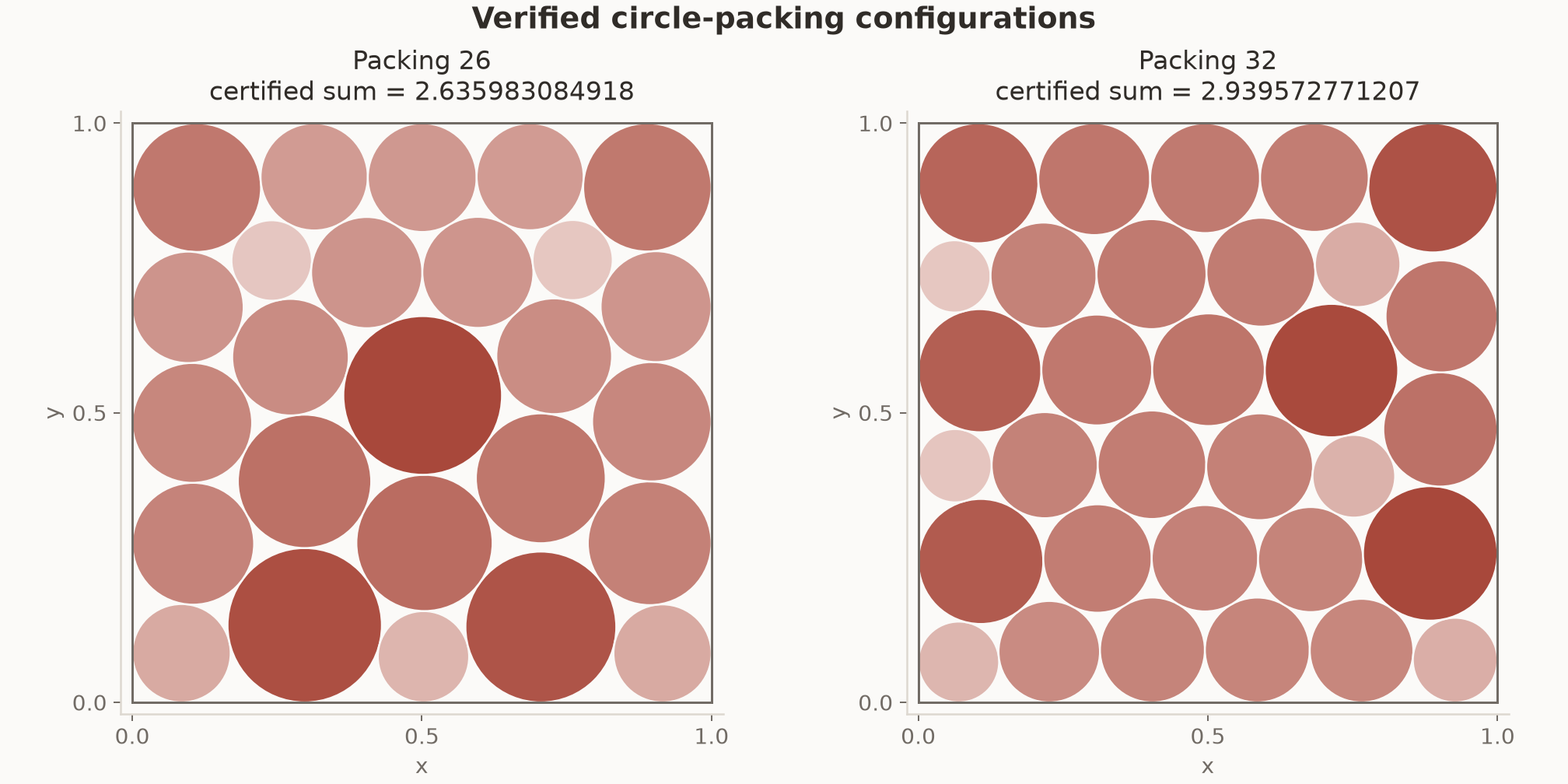

Circle-packing configurations and training metrics #

The two saved programs were executed again before their configurations were plotted. The replay checked the circle count, finite values, whether every circle stayed inside the square, and every pairwise distance with a tolerance of 1e-12. Floating point summation changed the recorded values by less than 1.2e-12.

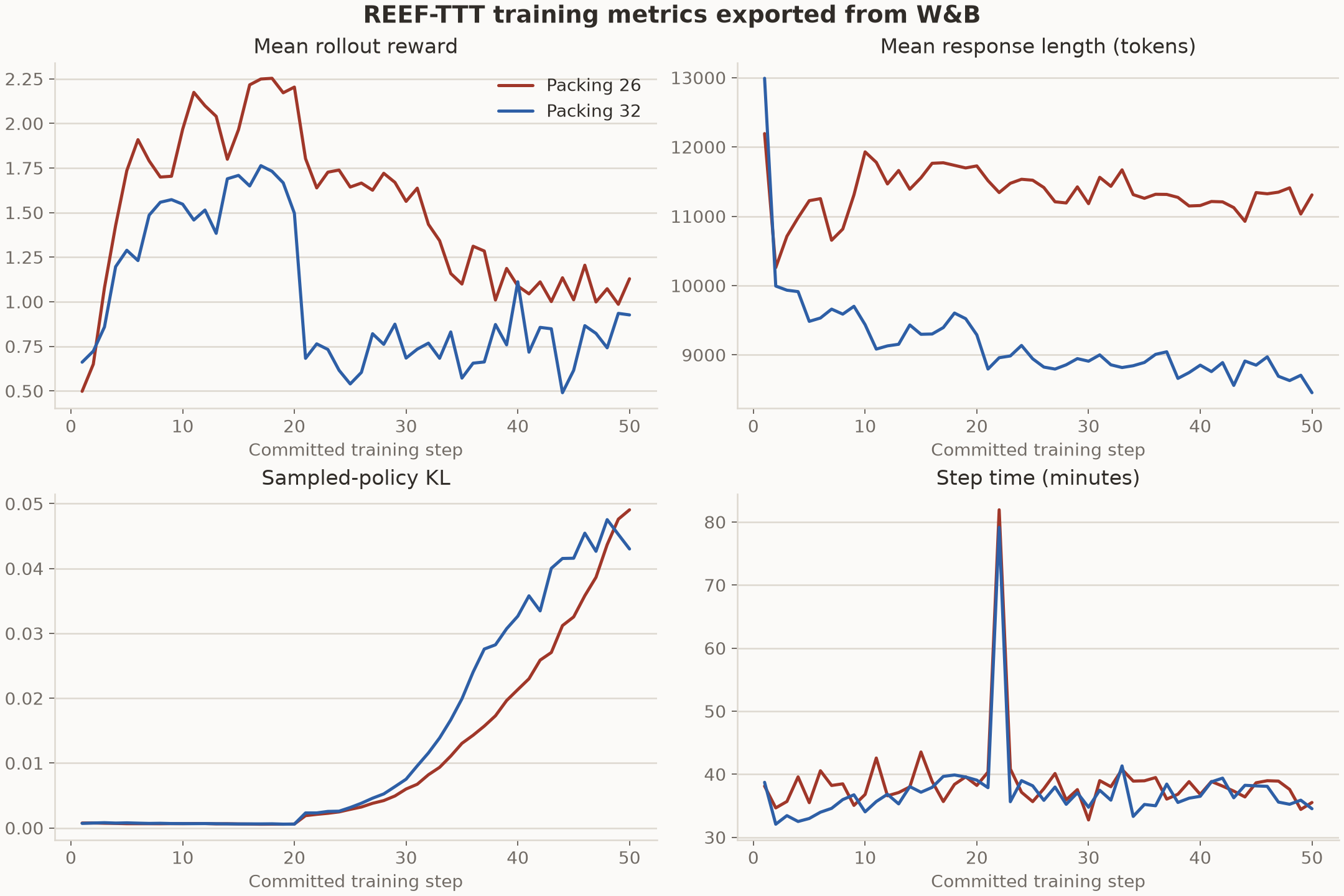

W&B recorded 50 committed rows for each packing task. The static export merges resumed run segments by the monotonic reef/step field and checks that steps 1 through 50 are present. rollout/rewards is the mean reward across one training grid, not the best score in the search archive.

The mean rollout reward reached its maximum at step 18 for Packing 26 and step 17 for Packing 32. Packing 26 reached its final certified result at iteration 13. Packing 32 reached 2.9395727712072386 at iteration 18 and its final result at iteration 24. The last change was about 2.5e-13. Mean rollout rewards then decreased to 1.1291 and 0.9264 at step 50. Sampled-policy KL increased from about 0.0006 at step 20 to 0.0491 for Packing 26 and 0.0430 for Packing 32 at step 50. These metrics describe the sampled training batches. The certified results come from the task judges and the best programs stored in the search archives.

The circle-packing overview contains the combined W&B history, verified configurations, generated programs, milestone summaries, and provenance records.

Enable W&B tracking #

The example disables W&B in serve.yaml by default. Set observability.wandb.enabled to true before starting the stack, and provide a project and an optional entity:

observability:
  wandb:
    enabled: true
    project: reef
    entity: your-team
    mode: online
    directory: work/wandb
    upload_checkpoints: false

Export WANDB_API_KEY or log in through the cluster's credential store. Do not put the key in YAML, tags, run names, or Slime flags. Reef assigns one W&B run identity to a scenario and resumes it after a service restart. Checkpoint paths are logged as metadata when upload_checkpoints is false. Experiment tracking describes grouping, rollback behavior, offline mode, and metric names.

When the processor receives a complete search grid, it records the following metrics in the tttd namespace. These values describe every evaluated rollout before constant-reward groups are removed from the training batch.

The harness also includes archive_size and archive_best_reward in each tttd_step_committed log event. These fields show whether the archive is still adding candidates and whether its best reward changes after the mean grid reward stops improving.

Inspect checkpoints and resume state #

Each task stores its durable files under work/<task>/:

work/<task>/
  reef.log
  tttd-search-state.json
  agent-record/
  artifacts.git/
  checkpoints/
  stack/
  wandb/

The search identity records the scenario, model, recipe, task-instruction hash, grid dimensions, completion length, sampling settings, PUCT exploration constant, and invalid reward. A restart with different identity fields stops before it can use an incompatible archive.

A pending state contains the evaluated children for a step that the controller has not observed as committed. On restart, the controller waits for that transaction. A committed state records the scenario step and serving runtime load ID that completed it. Serving runtime-load-ID strings belong to one engine session, so a restored checkpoint can receive a new string after the runtime starts. The controller accepts the new string after Reef restores the expected scenario step.

The repository example creates a checkpoint every two versions and retains the latest checkpoint under its storage policy. The formal circle-packing jobs used an interval of one version so that each completed step could be recovered from disk. Select the interval before the run. The retention policy controls which completed checkpoints remain stored; it does not change the creation interval. Architecture describes the commit and recovery model.

Add another problem #

Create a sibling under recipes/tttd/examples/tttd/harbor/. The task needs a task.toml, an instruction.md, a judge service, and a verifier that writes the final Harbor reward. Add its name to the TASKS tuple in run.py, which selects one with the TTTD_TASK environment variable and derives STATE_DIR from it, and point SCENARIO and SEARCH_STATE_PATH in harness/harbor_agent.py at it. Set the task's own sequence, evaluator, and memory values in serve.yaml and harness/harbor_agent.py when the existing ones do not apply.

The shared harness sends every extracted Python program to the selected judge. The judge's grade(artifact) function must return a finite reward for a valid program and the defined invalid reward for a failed program. Keep the program contract in the instruction consistent with the judge, and start a new scenario when that contract changes.

Add tests for the program contract, invalid outputs, reward calculation, and task registration. tests/test_tttd_harness.py and tests/test_tttd_packing_tasks.py show how the shared harness hands programs to a task-specific judge.
